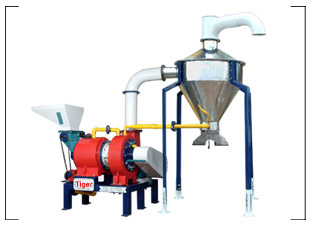

ECONOMIC PRODUCTS INTRODUCING FULLY AUTOMATIC
IMPACT PULVERIZER MACHINE WITH 100% JACKETED COOLING
AND AUTO FEEDING SYSTEM.
|
|
|
WE ARE FIRST IN WHOLE WORLD IN THIS TYPE OF MACHINE.
IN THIS MACHINE WE GIVES WIDE GRINDING CHEMBER, MAXIMUM
OUTPUT IN LOWER POWER CONSUPTION, 100% JAEKETED COOLING,
AUTO FEEDING, LONG LIFE BITTERS AND LINERS, NO MATERIAL
BURNING, COLD OUT PUT MTERIAL, NO WEIGHT LOSS, MEXIMUM
FINESS, MAINTAIN ORIGINAL TEST AND COLOUR OF OUT PUT MATERIAL,
DUSTING LESS, EASY TO CLEAN, MULTI POURPOSE USE.
WE WERE SRVEY ABOUT THIS PRODUCT AND WE FIND THAT THERE
ARE THOUSANDS OF COMPNIES ARE MANUFECHRING SIZE REDUCTION
AND GRINDING MACHINERY BUT THERE IS NO ANY ONE WHO GIVES
100% JACKETED COOLING SYSTEM SO WE ARE FIRST IN WHOLE
WORLD .
|
|
IN
THIS MACHINE YOU CAN GRIEND FOLLOWING ITEMS :
- SPICES
LIKE CHILLY, TURMERIC, CUMIN SEEDS ETC.
- FOOD
ITEMS LIKE SOYA, BLACK BEANS, GRAIN, WET, MAIZ,
ETC.
- CHEMICLS
LIKE BOXITE,GUERGUM, TAMERIND KARNEL, SOAP STONE, LIME
STONE, PESTICIDES, DYES, COAL, ALL TYPES OF SALT AND
OTHER CHEMICLS.
- AGGRICULTRE
ITEMS LIKE FERTILISERS,GYPSUM, CATTEL FEED.
- AYURVEDIC
AND PHARMACEUTICAL ITEMS AND OTHER ALL ITEMS WHICH
CAN BE MADE IN POWDER FORM.
- ALL
PROCESS LIKE GRINDING CLASSIFYING AND CONVEYING
WILL BE DONE IN SINGLE OPERATION. EASY TO CLEAN AND
WASH.
|
|
THE DESCRIPTION OF EAGLE FULLY AUTOMATIC IMPACT PULVERIZER
MACHINE WITH 100% JACKETED COOLING SYSTEM WHICH IS AS
FOLLOWS :
|
| MODELS
AVAILABLE |
EEPIUP-12 TO EEPIUP- 72 |
| H.P.
|
7.5 HP. TO 200 HP |
| R.P.M |
1800 TO 3500 |
| OUTPUT
PRODUCTION |
30 Kg./Hr. TO 3000 Kg/Hr.(*) |
| OUTPUT
MESH SIZE |
25 MESH TO 700 MESH.(*) |
| SPACE
REQUIREMENT |
DIFFTRENT AS PER MODEL |
| FEEDING
SYSTEM |
MECH. AUTO / ELECT. AUTO |
| MATERIAL |
PIPE, BEND, CYCLONE AND OUT PUT WAY ALL ARE IN S.S.
AS PER APPLICABLE |
| BITTERS
AND LINERS |
WE ARE USING GRADED MATERIALS IN BITTERS AND LINERS
SO IT BECOMES MAINTENANCE LESS TILL LONG TIME &
AS PER COUSTOMER REQUIREMENT ALSO. |
| FOUNDETION |
OUR
BITTERS, BLOWER, WIZER ARE FULLY DYNEMIC BALANCED
AND WE USE BEST QUALITY BEARING SO EAGLE ULTRAFINE
NEEDS NO ANY FOUNDETION |
| FEATURES |
THIS
MACHINE IS MAINTAIN ORIGINAL TEST, COLOUR, FREGRANCE
OF MATERIAL NO MATERIAL BURNING AND WEIGHT LOSS, YOU
GET SUPERIOR QUALITY OUTPUT. |
| PANNEL
BOARD |
AS
PER COUSTOMER'S REQUIREMENT. |
NOTE
: (*) IT WILL BE DEPEND ON INPUT MATERIAL
SIZE AND OUTPUT MATERIAL'S MESH SIZE. IF YOU WILL
GO FOR MORE FINESS THEN OUT PUT GOES DOWN.
|
|
|

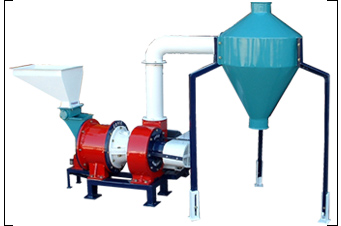

Non
Jackted Impact Pulverizer
Impact
Pulverizer Manufacturer | Impact Pulverizer Exporter |
Impact Pulverizer Supplier from India
 |
ECONOMIC PRODUCTS INTRODUCING FULLY AUTOMATIC IMPACT
PULVERIZER MACHINE WITH NON JACKETED COOLING AND
AUTO FEEDING SYSTEM. |
|
|
THE
DESCRIPTION OF EAGLE IMPACT PULVERIZER MACHINE NON JACKETED
WHICH IS AS FOLLOWS :
|
| MODELS
AVAILABLE |
EEPIP-12
TO EEPIP- 72 |
| H.P.
|
7.5
HP. TO 200 HP |
| R.P.M |
1800
TO 3500 |
| OUTPUT
PRODUCTION |
30
Kg./Hr. TO 3000 Kg/Hr.(*) |
| OUTPUT
MESH SIZE |
25
MESH TO 400 MESH.(*) |
| SPACE
REQUIREMENT |
DIFFTRENT
AS PER MODEL |
| FEEDING
SYSTEM |
MECH.
AUTO / ELECT. AUTO |
| BITTERS
AND LINERS |
WE
ARE USING GRADED MATERIALS IN BITTERS AND LINERS SO
IT BECOMES MAINTENANCE LESS TILL LONG TIME & AS
PER COUSTOMER REQUIREMENT ALSO. |
| FOUNDETION |
OUR
BITTERS, BLOWER, WIZER ARE FULLYDYNEMIC BALANCED AND
WE USE BEST QUALITY BEARING SO EAGLE ULTRAFINE NEEDS
NO ANY FOUNDETION YOU GET SUPERIOR QUALITY OUTPUT |
| PANNEL
BOARD |
AS
PER COUSTOMER'S REQUIREMENT |
|
|
|
|
NOTE
: (*) IT WILL BE DEPEND ON INPUT MATERIAL SIZE
AND OUTPUT MATERIAL'S MESH SIZE. IF YOU WILL GO
FOR MORE FINESS THEN OUT PUT GOES DOWN.
|
|
| |
|
ALL
PROCESS LIKE GRINDING CLASSIFYING AND CONVEYING WILL BE
DONE IN SINGLE OPERATION. EASY TO CLEAN AND WASH.
|
|
IDEAL
FOR FOLLOWING MATERIALS :
- FLOUR
-
MILET
- TEMRIND
SEEDS
- BITTALABAN
- BAUXITE
- CAPSICUM
- SULPHUR
- METAL
- COAL
- FERTILIZERS
- P.O.P
- POULTRY
ITEMS
-
PHARMACEUTICAL DRUGS
- GLASS
- HEARBAL
ITEMS
- GARLIC
- BLUE
VITRIOL
- MACE
- BOREX
- MAIZ
- ALL
TYPES OF HULLS
- RICE
- MICA
CHIPS
- CINNAMON
LEAVES
- HEMP
FLOWER
- CLOVES
- CORIANDER
- MANGOSTEEM
- MYROBALAN
CABULIC
- PEPPER
- CARDEMOM
|
- GRAIN
DAL (BESAN)
- MAIZ
- SOYA
- SODA
- VETCHES
GUM
- LIME
STONE
- SOAP
STONE
- MINERALS
- PIGMENTS
- PESTICIDE
- AYURVEDIC
ITEMS
- SAGO
- DNTIFRICE
- ANIMAL
FEEDS
- OTHER
SPICES
- WALNUT
- SUGAR
- MINT
- CHINA
CLAY
- MUNG
DAL
- GINGER
- WHITE
CEMENT
- HOG
PLUM (AMLA)
- GREEN
GRAMS
- HEENA
- FENNEL
SEEDS
- ANIS
SEEDS
- ISABGUL
- ROSE
APPLE SEEDS
- TROPOBISTINOSA
- BISHOP
WEED SEEDS
|
- WHEAT
- CATECHU
(KATTHA )
- SALT
- CELSITE
- CHILLY
- INDIGO
- SENDLE
WOOD
- SEPRATION
- ASBESTOS
FLUP
- C
I POWDER
- BONE
- COCONUT
CELL
- TOBACCO
- SEFFRON
- ONION
- AMMONIA
- CASHEW
NUT
- ALUM
- SARSAV
- RICECAP
- PULSE
- SESAME
SEEDS
- SOAPNUT
- BELIRIC
MYROBALAN
- ASAFETIDA
- ZARI
- DRY
GINGER
- COFEE
BEANS
- SAUNF
- CUMMIN
SEEDS
- TURMERIC
|
- OTHER
CHEMICAL PRODUCTS WHICH NEEDS POWDER FORM
- AND
ALL OTHER GRAINS WHICH CAN BE USED IN FINE POWDER
FORM
|
|
|
|
